U Type Electric Air Fins Heater
U Type Electric Air Fins Heater by LICHENGDA. Formed geometry and sheath loading, configuration details and made-to-drawing quotation for process equipment and formed heating assemblies.
Product image gallery (6)
PRODUCT ENGINEERING
Formed geometry and sheath loading
U Type Electric Air Fins Heater: Review the complete formed outline against the available space and the heating medium. Bend radius, cold ends and terminal orientation need to be fixed before the tube is formed.
Choose the sheath for corrosion exposure and operating temperature. Support long spans and allow thermal expansion rather than forcing the element into an undersized mounting path.
For U Type Electric Air Fins Heater, request the missing voltage, power and finished dimensions before calculating current, selecting a supply or fixing the mounting pattern.
For U Type Electric Air Fins Heater, send the supply, continuous and peak temperature, mounting drawing, lead exit and quantity. Include the heated medium and control method so the quoted configuration can be checked against the actual duty.
Application and reference configuration
Process equipment and formed heating assemblies. The final suitability of U Type Electric Air Fins Heater depends on the assembled equipment and agreed operating conditions.
Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.
| Voltage / Wattage | Confirmed for the application |
|---|---|
| Tube / Shape | Made to drawing |
| Material / Mounting | Selected for operating conditions |
ARCHIVED PRODUCT INFORMATION
Description

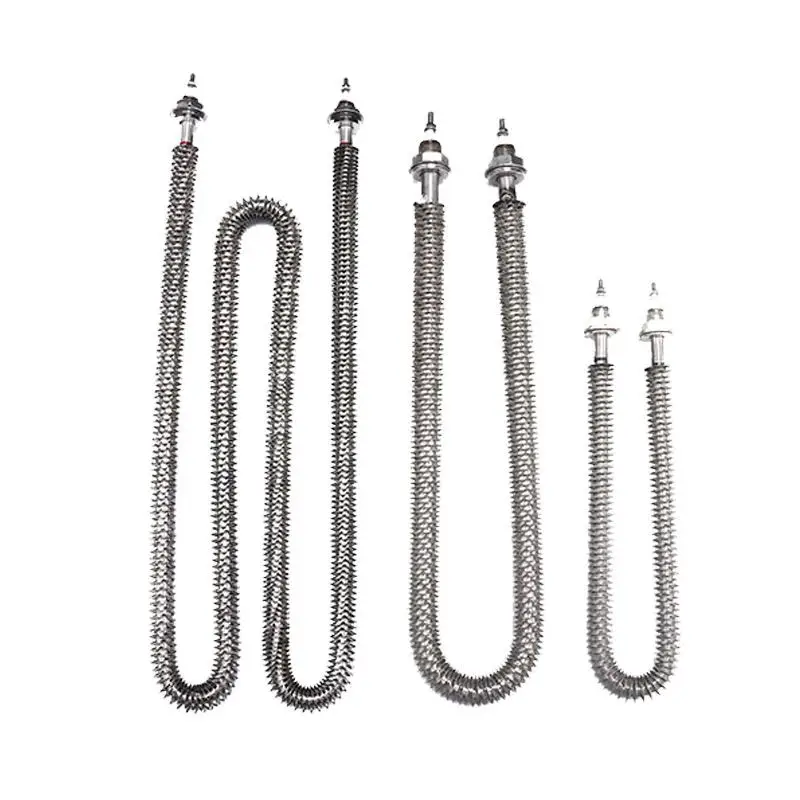

Finned tubular heater is constructed like basic tubular elements with the addition of continuous spiral fins
4-5 per inch permanently furnace brazed to the sheath. Fins greatly increase surface area and permit
faster heat transfer to air, resulting in lower surface element temperatures
Voltage | 220V | 220V 380V | ||||
Power | 500W | 800W | 1000W | 1200W | 1500W | 2000W |

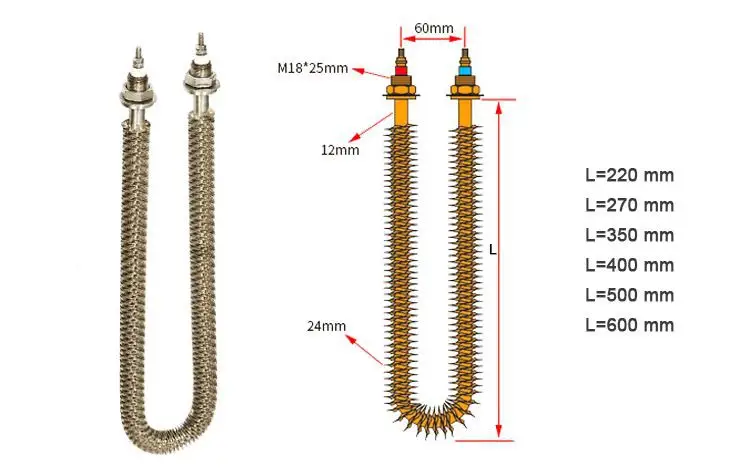

Length | 220mm | 270mm | 350mm | 400mm | 500mm | 600mm |
Product advantages
1: Selected iron, 201 stainless steel, 304 stainless steel, durable and high temperature resistant
2: Dry burning-resistant magnesium oxide powder, superior insulation performance, fast heating
3: Precision fins, encryption design, mechanical processing and winding, uniform heating
4: Brand electric heating wire, high temperature resistance, oxidation resistance, durable
